What Is the TDP of the Core i9-12900 CPU?

Find out the TDP of Intel's 12th generation Core i9 12900 processors.

12900 TDP Timur Garifov / Unsplash

Last Updated: August 4, 2022

Written by Kevin Jones

This article will discuss the TDP of the 12900. Additionally, we will provide recommendations for compatible CPU coolers.

Best AIO Liquid Cooler
Check another CPU:

What Is the TDP of the 12900?

Section Link

Intel CPU specifications indicate this power dissipation number as "Processor Base Power" and "Maximum Turbo Power."

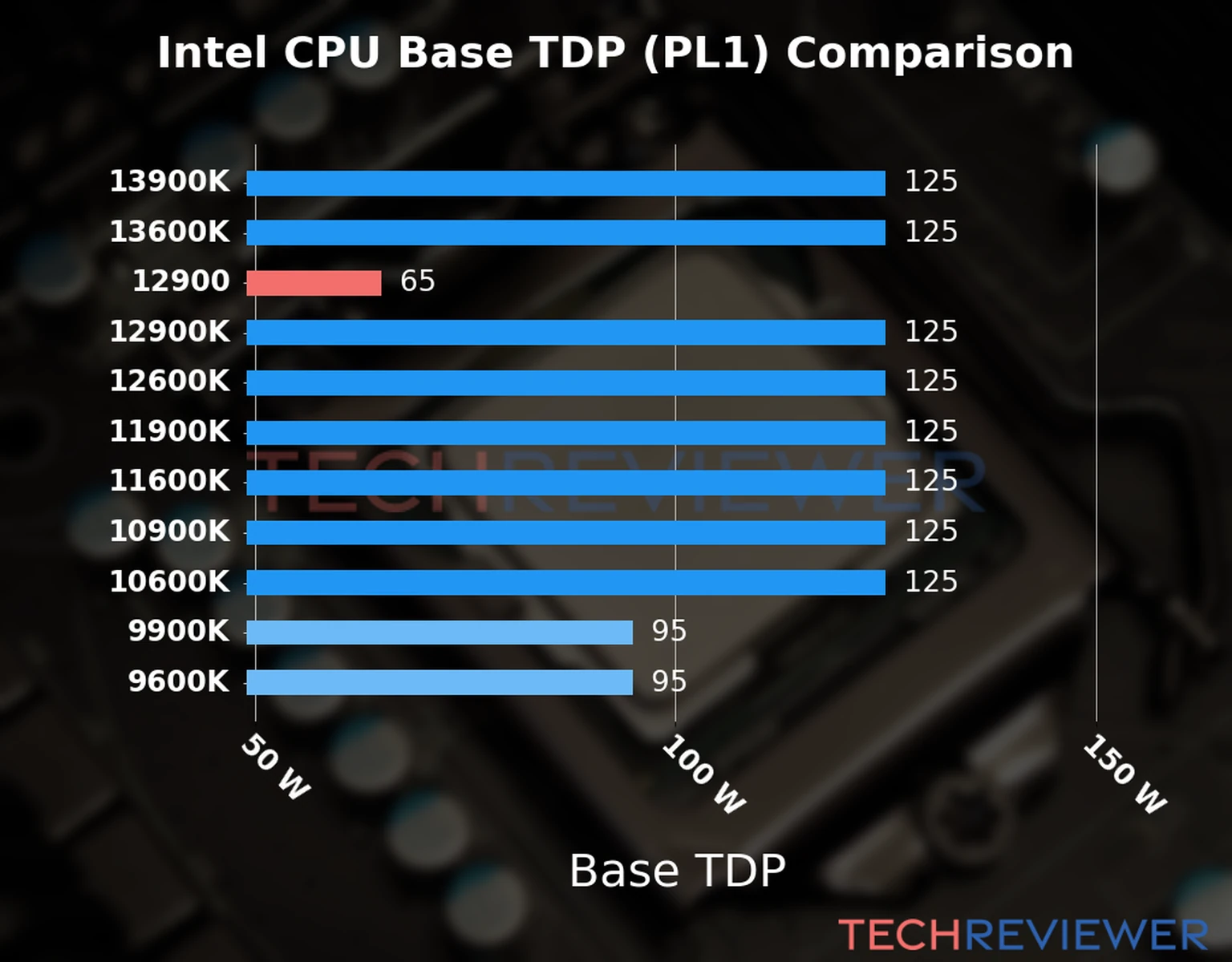

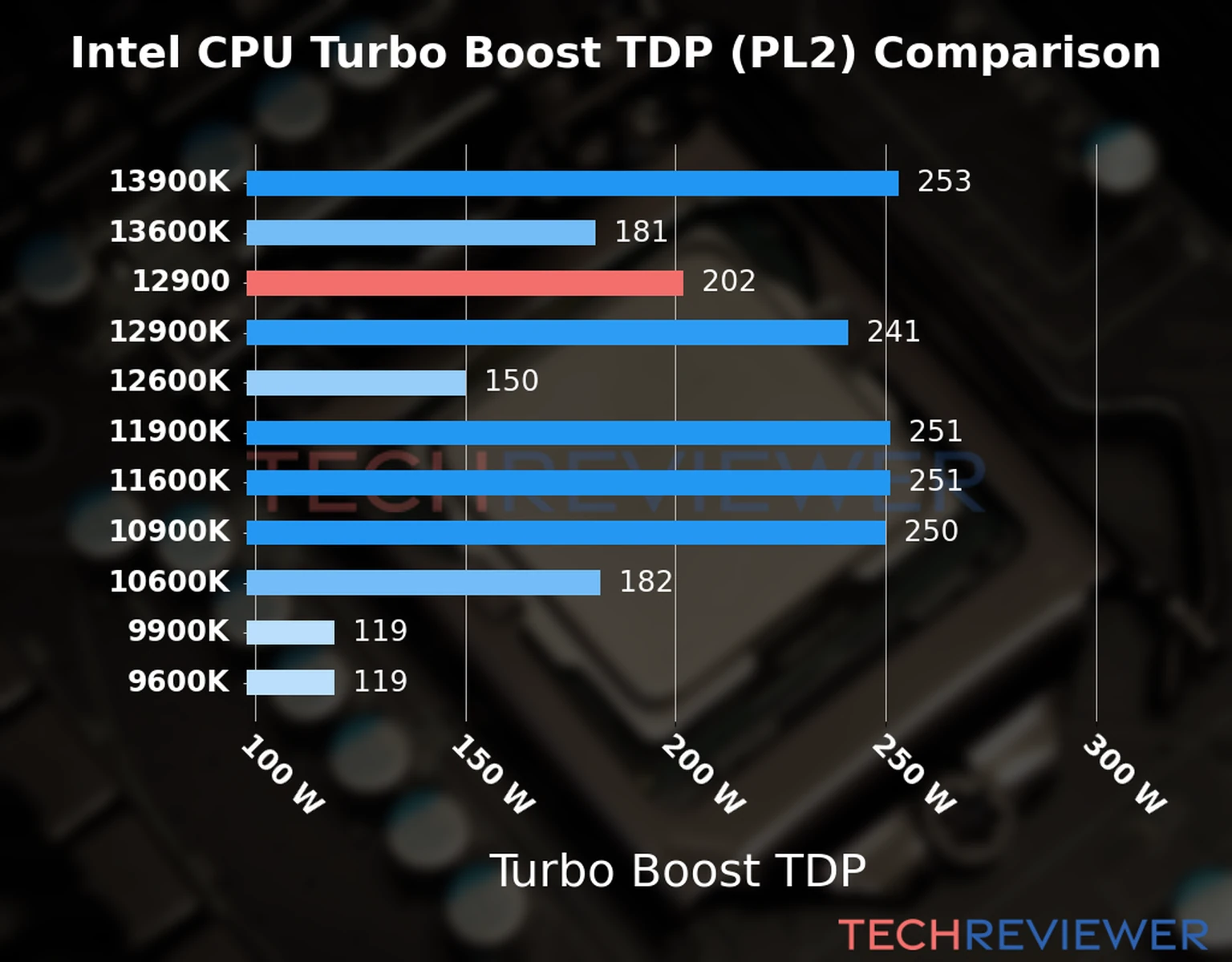

The Core i9-12900 has a base TDP of 65 watts and a max turbo TDP of 202 watts.

Check out our Recommended LGA 1700 Coolers below.

Intel Core i9-12900 16 Core 2.40 GHz Processor Intel Core i9-12900 16 Core 2.40 GHz Processor Check Price on Amazon Amazon Affiliate Link

CPU Cooling for the 12900

Section Link

Thermal Dissipation

A CPU cooler's TDP (Thermal Design Power) rating indicates how much heat it can dissipate in watts. If the cooler can't keep your CPU cool enough, your CPU may throttle (slow down), and your cooler will constantly run at full speed.

Intel CPU specifications indicate this power dissipation number as "Processor Base Power" and "Maximum Turbo Power."

Depending on the workload, the Core i9-12900 has a TDP of 65–202 watts.

A CPU cooler can still work with a lower TDP rating than the TDP of a CPU. However, the CPU will eventually throttle itself to a lower frequency to allow itself to cool.

The CPU may not achieve or maintain maximum turbo speeds without adequate cooling.

Types of Coolers

Air coolers use a combination of heatsinks and fans. They are the cheapest, but also the loudest.

A Closed-Loop Cooler (CLC), also called an All-in-One (AIO) cooler, is a type of liquid cooler. All-in-one liquid coolers provide a more straightforward setup in a single pre-built package.

Liquid cooling can provide even better TDP performance at lower noise levels but are more expensive and take up more room. The noise level and ability to cool your CPU will depend on the liquid cooling solution's radiator size and the number and size of the fans.

Find LGA 1700 AIO Coolers on Amazon (affiliate link).

Open-Loop Coolers are also a type of liquid cooler, except you construct them yourself. They allow for more flexibility in building your perfect cooling solution but can also be more complicated to set up. Open-loop systems give you the flexibility to cool additional devices, such as your graphics card's GPU.

Noctua NH-D15, Premium CPU Cooler Noctua NH-D15, Premium CPU Cooler Check Price on Amazon Amazon Affiliate Link

Noise

More fans typically mean better cooling. However, they also mean more noise.

Larger fans are typically quieter than smaller fans, as they can move the same amount of air at lower speeds.

If a cooler is struggling to cool a CPU, it will run at its maximum speed, which will be louder.

Fan noise levels are measured a dB. Lower dB values are quieter.

You can often configure your motherboard's BIOS to use specific fan speeds at particular temperatures. This configurable fan speed allows you to have a near-silent computer while your computer is idle.

Mounting Brackets

CPU coolers can have various mounting brackets to work with different socket sizes. Make sure that your cooler comes with a compatible mounting bracket.

The easiest way to find a CPU cooler that will work for your computer is to search by socket type. For example, the 12900 uses an LGA 1700 socket, so you would search for an LGA 1700 CPU cooler.

In some cases, such as when a new socket size is released, there may not be many compatible coolers. In these cases, you can often purchase a separate mounting/retention kit to work with the new dimensions.

Size

Before buying the biggest cooler possible, ensure that your case and motherboard configuration have room.

Also, ensure that other components on your motherboard won't interfere due to size constraints. For example, do your memory modules (DIMMs) have tall heat spreaders?

Dual-fan coolers often take up quite a bit of room. Liquid cooling solutions typically position fans at the top or bottom of the case.

Lighting

Some CPU cooler fans come with LED lighting. Similarly, liquid cooling pump heads can also come with LEDs or even LCDs!

If you want to turn off the lights when they get annoying, make sure your CPU cooler has that option.

Price

In general, air-based coolers will be lower cost than liquid cooling systems.

CPU coolers that support a higher TDP are also typically correlated with a higher price.

The more advanced lighting features tend to also come at an extra cost. You can decide between a practical, low-cost solution and a dazzling light show.

The distance between heatsink screw holes for the LGA 1700 socket increased to 78x78 mm from the 75x75 mm spacing typical of recent sockets. This new spacing means you'll need a new cooler/heatsink or upgrade kit that supports the new configuration.

Section Link

Locked Intel CPUs may come with a stock CPU cooler. These CPU models do not have a "K" in the name. While stock coolers will prevent your CPU from overheating, your CPU will throttle its performance during games and other intensive tasks. Higher TDP coolers will keep your CPU at turbo speeds for longer durations. Stock coolers are often quite loud at their maximum speed.

The LGA 1700 socket will require a CPU cooler that supports the new socket size. Some manufacturers are releasing upgrade kits for LGA 1200 heatsinks to support the new size.

Best AIO Liquid Cooler: Enermax Liqmax III 360

Best Dual-Fan Air CPU Cooler: Noctua NH-D15

  • Dual 140 mm fans provide 220-watt TDP (183 NSPR) of cooling capability.
  • Supports a variety of CPU sockets, including Intel LGA 1700, 1200, 1156, 1155, 1151, 1150, 2011, 2066 and AMD AM4, AM3, AM3+, AM2, AM2+, FM2, FM2+.
  • Quiet operation at 24.6 dBA. Noctua NH-D15, Premium CPU Cooler Noctua NH-D15, Premium CPU Cooler Check Price on Amazon Amazon Affiliate Link

Runner Up - Dual-Fan Air CPU Cooler: Thermaltake TOUGHAIR 510

  • This CPU cooler doesn't have any fancy LED lights, but the dual 120 mm fans do a great job of cooling LGA 1700 CPUs.
  • Suppose you think this cooler will take up too much space. In that case, Thermaltake has a few single-fan TOUGHAIR variants which use different orientations.
  • This CPU cooler has a 2000 RPM max speed for optimal cooling.
  • 180-watt TDP (Thermal Design Power). Thermaltake TOUGHAIR 510 Thermaltake TOUGHAIR 510 Check Price on Amazon Amazon Affiliate Link

Learn More About the Intel Core i9-12900

Section Link

You can find detailed 12900 specifications on Intel's site.
