What Is the TDP of the Core i5-11600K CPU?

Find out the TDP of Intel's 11th generation Core i5 11600K processors.

Motherboard Timur Garifov / Unsplash

Last Updated: January 25, 2022

Written by Kevin Jones

This article will discuss the TDP of the 11600K. Additionally, we will provide recommendations for compatible CPU coolers, motherboards, and memory.

What Is the TDP of the 11600K?

Section Link

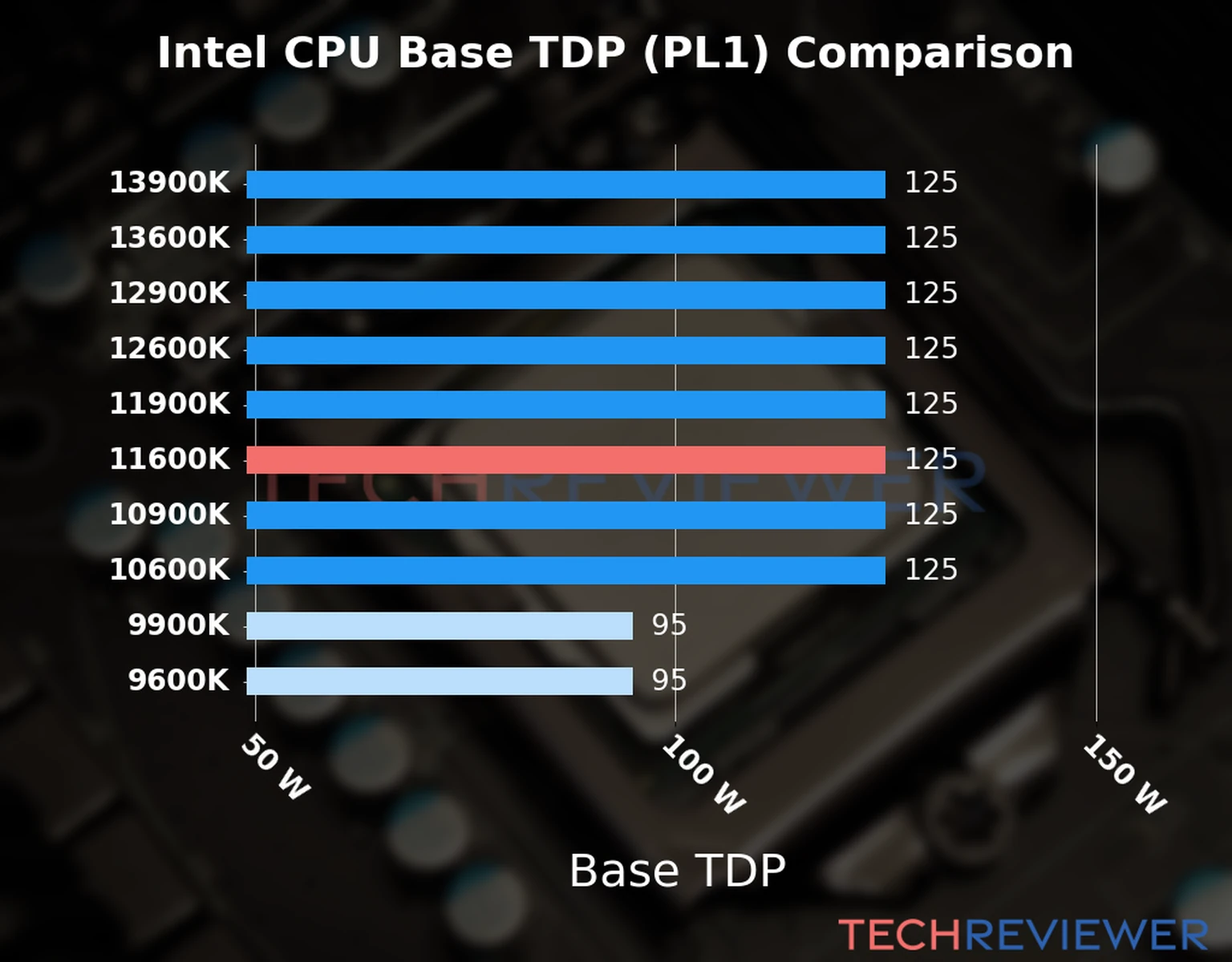

Intel CPU specifications indicate this power dissipation number as "Processor Base Power."

The Core i5-11600K has a TDP of 125 watts.

Check out our Recommended LGA 1200 Coolers below.

Check out our Recommended Motherboards for 11th Gen CPUs below.

Intel Core i5-11600K Intel Core i5-11600K Check Price on Amazon Amazon Affiliate Link

CPU Cooling for the 11600K

Section Link

Thermal Dissipation

A CPU cooler's TDP (Thermal Design Power) rating indicates how much heat it can dissipate in watts. If the cooler can't keep your CPU cool enough, your CPU may throttle (slow down), and your cooler will constantly run at full speed.

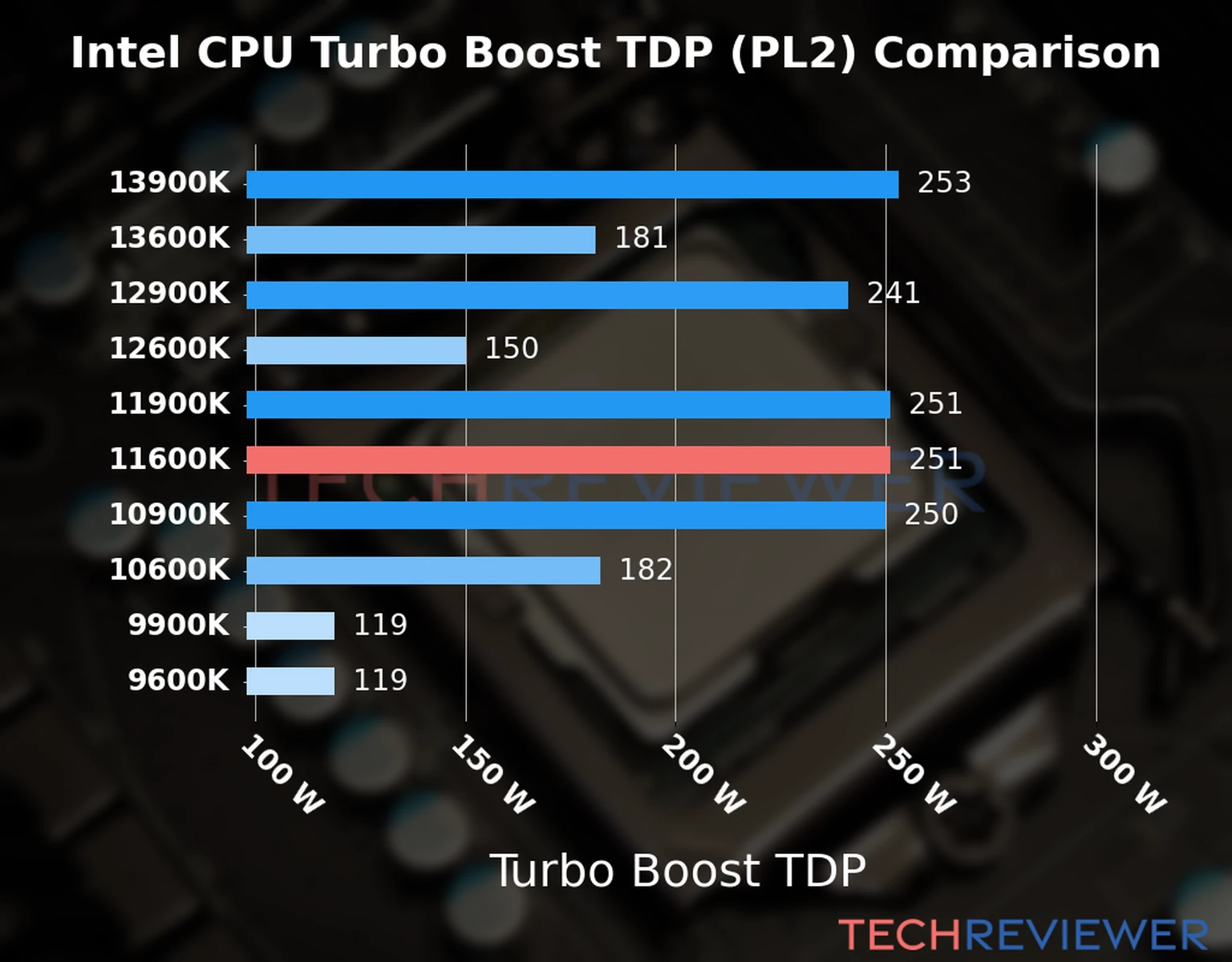

Intel CPU specifications indicate this power dissipation number as "Processor Base Power" and "Maximum Turbo Power."

The Core i5-11600K has a TDP of 125 watts.

A CPU cooler can still work with a lower TDP rating than the TDP of a CPU. However, the CPU will eventually throttle itself to a lower frequency to allow itself to cool.

Without adequate cooling, the CPU may not be able to achieve or maintain maximum turbo speeds.

Types of Coolers

Air coolers use a combination of heatsinks and fans. They are the cheapest, but also the loudest.

A Closed-Loop Cooler (CLC), also called an All-in-One (AIO) cooler, is a type of liquid cooler. All-in-one liquid coolers provide a more straightforward setup in a single pre-built package.

Liquid cooling can provide even better TDP performance at lower noise levels but are more expensive and take up more room. The noise level and ability to cool your CPU will depend on the liquid cooling solution's radiator size and the number and size of the fans.

Find LGA 1200 AIO Coolers on Amazon (affiliate link).

Open-Loop Coolers are also a type of liquid cooler, except you construct them yourself. They allow for more flexibility in building your perfect cooling solution but can also be more complicated to set up. Open-loop systems give you the flexibility to cool additional devices, such as your graphics card's GPU.

Noctua NH-D15, Premium CPU Cooler Noctua NH-D15, Premium CPU Cooler Check Price on Amazon Amazon Affiliate Link

Noise

More fans typically mean better cooling. However, they also mean more noise.

Larger fans are typically quieter than smaller fans, as they can move the same amount of air at lower speeds.

If a cooler is struggling to cool a CPU, it will run at its maximum speed, which will be louder.

Fan noise levels are measured a dB. Lower dB values are quieter.

You can often configure your motherboard's BIOS to use specific fan speeds at particular temperatures. This configurable fan speed allows you to have a near-silent computer while your computer is idle.

Mounting Brackets

CPU coolers can have various mounting brackets to work with different socket sizes. Make sure that your cooler comes with a compatible mounting bracket.

The easiest way to find a CPU cooler that will work for your computer is to search by socket type. For example, the 11600K uses an LGA 1200 socket, so you would search for an LGA 1200 CPU cooler.

In some cases, such as when a new socket size is released, there may not be many compatible coolers. In these cases, you can often purchase a separate mounting/retention kit to work with the new dimensions.

Size

Before buying the biggest cooler possible, make sure that your case and motherboard configuration have room.

Also, ensure that other components on your motherboard won't interfere due to size constraints. For example, do your memory modules (DIMMs) have tall heat spreaders?

Dual-fan coolers often take up quite a bit of room. Liquid cooling solutions typically position fans at the top or bottom of the case.

Lighting

Some CPU cooler fans come with LED lighting. Similarly, liquid cooling pump heads can also come with LEDs or even LCDs!

If you want to turn off the lights when they get annoying, make sure your CPU cooler has that option.

Price

In general, air-based coolers will be lower cost than liquid cooling systems.

CPU coolers that support a higher TDP are also typically correlated with a higher price.

The more advanced lighting features tend to also come at an extra cost. You can decide between a practical, low-cost solution and a dazzling light show.

Section Link

Best AIO Liquid Cooler: Enermax Liqmax III 360

  • This Enermax liquid cooler has an excellent cooling capability with a 360-watt TDP (Thermal Design Power).
  • Supports a variety of CPU sockets, including Intel LGA 2066, 2011-3, 2011, 1700, 1200, 1366, 1156, 1155, 1151, 1150 and AMD AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1.
  • Quiet operation at 14-27 dBA.
  • Make sure your computer case dimensions support this, as it will take up a decent amount of space! Enermax Liqmax III 360 Enermax Liqmax III 360 Check Price on Amazon Amazon Affiliate Link

Best Dual-Fan Air CPU Cooler: Noctua NH-D15

  • Dual 140 mm fans provide 220-watt TDP (183 NSPR) of cooling capability.
  • Supports a variety of CPU sockets, including Intel LGA 1700, 1200, 1150, 1151, 1155, 1156, 2011, 2066 and AMD AM4, AM3, AM3+, AM2, AM2+, FM2, FM2+.
  • Quiet operation at 24.6 dBA. Noctua NH-D15, Premium CPU Cooler Noctua NH-D15, Premium CPU Cooler Check Price on Amazon Amazon Affiliate Link

Runner Up - Dual-Fan Air CPU Cooler: Thermaltake TOUGHAIR 510

  • This CPU cooler doesn't have any fancy LED lights, but the dual 120 mm fans do a great job of cooling LGA 1200 CPUs.
  • Suppose you think this cooler will take up too much space. In that case, Thermaltake has a few single-fan TOUGHAIR variants which use different orientations.
  • This CPU cooler has a 2000 RPM max speed for optimal cooling.
  • 180-watt TDP (Thermal Design Power). Thermaltake TOUGHAIR 510 Thermaltake TOUGHAIR 510 Check Price on Amazon Amazon Affiliate Link

Motherboard Requirements for Core i5-11600K Processors

Section Link

For Intel's 11th generation Core i5 11600K processor, you'll need a motherboard with an LGA 1200 socket and a compatible 500-series or 400-series chipset.

The "K" in the model name 11600K means it's an unlocked processor that supports overclocking. You will need a motherboard with the Z590 or Z490 chipset to support CPU overclocking.

For compatiblity with Intel's 11th generation Core processor, you can use any of the 500-series chipsets: Z590, H570, B560, H510. These are roughly sorted from most to least functionality. The W580 and Q570 chipsets are also compatible, but motherboards are no longer widely available.

Intel 500 Series Desktop Chipsets
Z590H570B560H510
Launch Date Q1 2021 Q1 2021 Q1 2021 Q1 2021
CPU Overclocking Yes No No No
PCIe 4.0 Slots via Processor
(10th Gen CPUs @ PCIe 3.0)
One x16 + One x4
or Two x8 + One x4
or One x8 + Three x4
One x16 + One x4 One x16 + One x4 One x16
PCIe 3.0 Lanes via Chipset Up to 24 Up to 20 Up to 12 Up to 6
Memory Overclocking Yes Yes Yes No
Integrated Wireless Wi-Fi 6 AX201 Wi-Fi 6 AX201 Wi-Fi 6 AX201 Wi-Fi 6 AX201
DMI 3.0 Lanes 8 8 4 4
USB 3.2 Gen 2x2 (20 Gbps) Up to 3 Up to 2 Up to 2 None
USB 3.2 Gen 2x1 (10 Gbps) Up to 10 Up to 4 Up to 4 None
USB 3.2 Gen 1x1 (5 Gbps) Up to 10 Up to 8 Up to 6 Up to 4
USB 2.0 Ports 14 14 12 10
SATA 3.0 Ports 6 6 6 4
PCIe RAID 0, 1, 5, 10 0, 1, 5, 10 None None
SATA RAID 0, 1, 5, 10 0, 1, 5, 10 None None

While the budget-friendly 400-series B460 and H410 won't work with the 11th generation Core processor, the W480, Z490, Q470, and H470 400-series chipsets are compatible. However, these chipsets were originally designed for the 10th generations Core processors, and will limit the capabilities of your system.

Intel 400 Series Desktop Chipsets
W480Z490Q470H470
Launch Date Q2 2020 Q2 2020 Q2 2020 Q2 2020
CPU Overclocking No Yes No No
PCIe 3.0 Slots via Processor One x16
or One x8 + Two x4
One x16
or One x8 + Two x4
One x16
or One x8 + Two x4
One x16
PCIe 3.0 Lanes via Chipset 24 24 24 20
Memory Overclocking Yes Yes No No
Integrated Wireless Wi-Fi 6 AX201 Wi-Fi 6 AX201 Wi-Fi 6 AX201 Wi-Fi 6 AX201
USB 3.2 Gen 2x1 (10 Gbps) Up to 8 Up to 6 Up to 6 Up to 4
USB 3.2 Gen 1x1 (5 Gbps) Up to 10 Up to 10 Up to 10 Up to 8
USB 2.0 Ports 14 14 14 14
SATA 3.0 Ports 8 6 6 6
Section Link

Best Feature Motherboard: ASUS ROG Maximus XIII Hero

  • Our recommended feature-rich motherboard to pair with the Core i5-11600K is ASUS's ROG Maximus XIII Hero: ASUS ROG Maximus XIII Hero ASUS ROG Maximus XIII Hero Check Price on Amazon Amazon Affiliate Link
    • Four NVMe M.2 slots, which is great! (two @ PCIe 4.0 speeds, two @ PCIe 3.0 speeds).
    • This board includes various headers for accessories, including 3 ARGB headers for lighting control and separate liquid pump header.
    • Audio noise canceling and an optical audio output port
    • Z590 chipset supports overclocking for K-prefixed CPUs.
    • PCIe 4.0 support
    • Wi-Fi 6E makes it easy to reach the fastest speeds and future-proof your Wi-Fi system.
    • Bluetooth 5.2 is great for streaming music to Bluetooth headphones.
    • Two 2.5 Gb Ethernet ports are faster than most Internet speeds with room to spare for file transfers.
    • USB 3.2 Gen 2x2 offers 20 Gbps USB speeds!
    • Check the latest price of the ASUS ROG Maximus XIII Hero on Amazon (affiliate link).

Best Value Motherboard: MSI Z590 PRO WiFi ProSeries

  • Our recommended value motherboard to pair with the Core i5-11600K is MSI's Z590 PRO WiFi ProSeries motherboard: MSI Z590 PRO WiFi ProSeries MSI Z590 PRO WiFi ProSeries Check Price on Amazon Amazon Affiliate Link
    • Three NVMe M.2 slots, which is pretty good (one @ PCIe 4.0 speeds, two @ PCIe 3.0 speeds).
    • PCIe 4.0 support
    • Z590 chipset supports overclocking for K-prefixed CPUs.
    • Wi-Fi 6E makes it easy to reach the fastest speeds and future-proof your Wi-Fi system.
    • Bluetooth 5.2 is great for streaming music to Bluetooth headphones.
    • Two 2.5 Gb Ethernet ports are faster than most Internet speeds with room to spare for file transfers.
    • USB 3.2 Gen 2x2 offers 20 Gbps USB speeds!
    • Check the latest price of the MSI Z590 PRO WiFi ProSeries on Amazon (affiliate link).
Section Link
  • It comes in a variety of frequencies, including 3000 MHz, 3200 MHz, 3600 MHz, 4000 MHz, and 4400 MHz
  • Reasonable CL16 timings (CAS Latency)
  • The low-profile form factor ensures that the heat spreaders don't get in the way of other devices, including your CPU heatsink
  • Crucial is a reputable brand, and I have used their memory in my machines
  • The customizable LEDs zones are a pretty cool bonus Crucial Ballistix RGB DDR4 Crucial Ballistix RGB DDR4 Check Price on Amazon Amazon Affiliate Link
