Which Chipsets Work With AMD's Ryzen 3 2200GE CPU?

Find out which retail desktop chipsets are compatible with AMD's Zen-based Ryzen 3 2200GE processors.

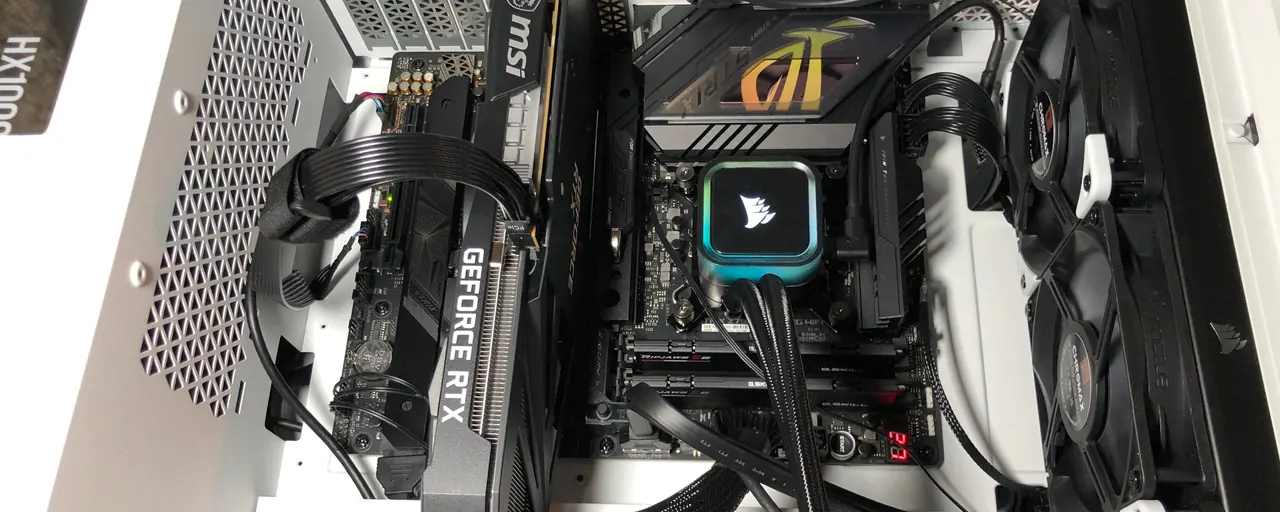

Motherboard Timur Garifov / Unsplash

Last Updated: November 26, 2022

Written by Kevin Jones

In addition to discussing the chipsets that are compatible with AMD's Ryzen 3 2200GE processor, this article will discuss Recommended Motherboards below. OEM-only chipsets that are not available on retail motherboards are outside the scope of this article.

Best B450 Motherboard
Check another CPU:

Important considerations regarding this CPU:

The Ryzen 3 2200GE CPU isn't available in a boxed version. However, you may be able to purchase it in a tray version or as part of a pre-built computer.

Tray versions are sold in bulk, without retail-box packaging. These CPUs are then sometimes sold again, individually.

Which Chipsets Are Compatible With the Ryzen 3 2200GE Processor?

Section Link

For AMD's Zen-based Ryzen 3 2200GE processor, you'll need a motherboard with an AM4 socket and a compatible chipset.

Motherboards for AMD processors are made with chipsets provided by AMD. Each chipset offers a unique set of capabilities. However, motherboards must explicitly support features and capabilities for you to use them. Verify that a motherboard supports the features and capabilities you desire.

Ryzen 2000-series CPUs, which includes the Ryzen 3 2200GE, are compatible with all 300 and 400-series consumer chipsets. Supported chipsets include the X470, B450, X370, B350, and A320.

The X470 and B450 are our recommended chipsets for the Ryzen 3 2200GE CPU, as they provide the most functionality among compatible chipsets.

Note that the Ryzen 3 2200GE CPU only supports PCIe 3.0.

400-Series Chipsets

AMD 400-Series Desktop Chipsets
X470 B450
Release Date March 2018 March 2018
CPU Overclocking Yes Yes

PCIe Slots via Processor See Exceptions: MAX, 4.0

One x16 + One x4 or Two x8 + One x4 at PCIe 3.0 speeds

One x16 + One x4 at PCIe 3.0 speeds

PCIe Lanes via Chipset See Exceptions: MAX

Up to 8 lanes at PCIe 2.0 speeds Up to 6 lanes at PCIe 2.0 speeds
USB 3.2 Gen 2x1 (10 Gbps) Up to 2 Up to 2
Total USB Up to 18 Up to 14
SATA 3.0 Ports Up to 10 Up to 6
RAID 0, 1, 10 0, 1, 10

MAX The maximum supported PCI-Express version for the Ryzen 3 2200GE CPU is PCIe 3.0.

4.0 PCIe 4.0 speeds may be supported for CPU lanes on some motherboards, with a BIOS update and CPU that supports PCIe 4.0.

300-Series Chipsets

The A320 chipset does not support overclocking Zen-based CPUs.

AMD 300-Series Desktop Chipsets
X370 B350 A320
Release Date February 2017 February 2017 February 2017
CPU Overclocking Yes Yes Pre-Zen CPUs Only

PCIe Slots via Processor See Exceptions: MAX

One x16 + One x4 or Two x8 + One x4 at PCIe 3.0 speeds

One x16 + One x4 at PCIe 3.0 speeds

One x16 + One x4 at PCIe 3.0 speeds

PCIe Lanes via Chipset See Exceptions: MAX

Up to 8 lanes at PCIe 2.0 speeds Up to 6 lanes at PCIe 2.0 speeds Up to 4 lanes at PCIe 2.0 speeds
USB 3.2 Gen 2x1 (10 Gbps) Up to 2 Up to 2 Up to 1
Total USB Up to 18 Up to 14 Up to 13
SATA 3.0 Ports Up to 10 Up to 6 Up to 6
RAID 0, 1, 10 0, 1, 10 0, 1, 10

MAX The maximum supported PCI-Express version for the Ryzen 3 2200GE CPU is PCIe 3.0.
