This article will discuss the TDP of the Ryzen 3 1200 AF. Additionally, we will provide recommendations for compatible CPU coolers, motherboards, and memory.

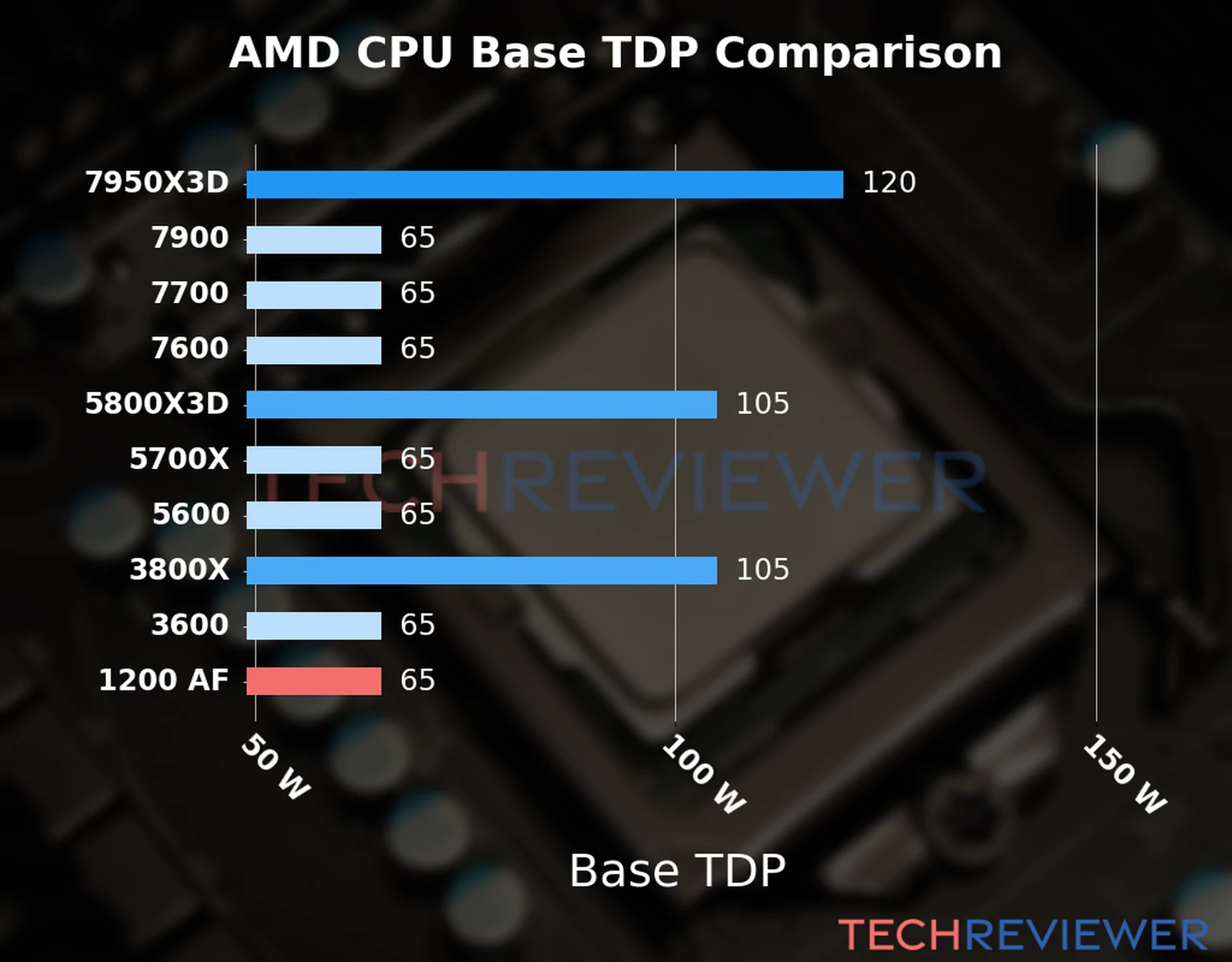

The Ryzen 3 1200 AF has a TDP of 65 watts.
Check out our Recommended AM4 Coolers below.
Check out our Recommended Motherboards below.
A CPU cooler's TDP (Thermal Design Power) rating indicates how much heat it can dissipate in watts. If the cooler can't keep your CPU cool enough, your CPU may throttle (slow down), and your cooler will constantly run at full speed.
The Ryzen 3 1200 AF has a TDP of 65 watts.
A CPU cooler can still work with a lower TDP rating than the TDP of a CPU. However, the CPU will eventually throttle itself to a lower frequency to allow itself to cool.
The CPU may not achieve or maintain maximum boost speeds without adequate cooling.
Types of Coolers
Air coolers use a combination of heatsinks and fans. They are the cheapest, but also the loudest.
A Closed-Loop Cooler (CLC), also called an All-in-One (AIO) cooler, is a type of liquid cooler. All-in-one liquid coolers provide a more straightforward setup in a single pre-built package.
Liquid cooling can provide even better TDP performance at lower noise levels but are more expensive and take up more room. The noise level and ability to cool your CPU will depend on the liquid cooling solution's radiator size and the number and size of the fans.
Find AM4 AIO Coolers on Amazon (affiliate link).
Open-Loop Coolers are also a type of liquid cooler, except you construct them yourself. They allow for more flexibility in building your perfect cooling solution but can also be more complicated to set up. Open-loop systems give you the flexibility to cool additional devices, such as your graphics card's GPU.
More fans typically mean better cooling. However, they also mean more noise.
Larger fans are typically quieter than smaller fans, as they can move the same amount of air at lower speeds.
If a cooler is struggling to cool a CPU, it will run at its maximum speed, which will be louder.
Fan noise levels are measured a dB. Lower dB values are quieter.
You can often configure your motherboard's BIOS to use specific fan speeds at particular temperatures. This configurable fan speed allows you to have a near-silent computer while your computer is idle.
CPU coolers can have various mounting brackets to work with different socket sizes. Make sure that your cooler comes with a compatible mounting bracket.
The easiest way to find a CPU cooler that will work for your computer is to search by socket type. For example, the 1200 AF uses an AM4 socket, so you would search for an AM4 CPU cooler.
In some cases, such as when a new socket size is released, there may not be many compatible coolers. In these cases, you can often purchase a separate mounting/retention kit to work with the new dimensions.
Before buying the biggest cooler possible, ensure that your case and motherboard configuration have room.
Also, ensure that other components on your motherboard won't interfere due to size constraints. For example, do your memory modules (DIMMs) have tall heat spreaders?
Dual-fan coolers often take up quite a bit of room. Liquid cooling solutions typically position fans at the top or bottom of the case.
Some CPU cooler fans come with LED lighting. Similarly, liquid cooling pump heads can also come with LEDs or even LCDs!
If you want to turn off the lights when they get annoying, make sure your CPU cooler has that option.
In general, air-based coolers will be lower cost than liquid cooling systems.
CPU coolers that support a higher TDP are also typically correlated with a higher price.
The more advanced lighting features tend to also come at an extra cost. You can decide between a practical, low-cost solution and a dazzling light show.
The boxed version of the Ryzen 3 1200 AF CPU comes with the Wraith Stealth CPU cooler. While stock coolers will prevent your CPU from overheating, your CPU will throttle its performance during games and other intensive tasks. Higher TDP coolers will keep your CPU at turbo speeds for longer durations. Stock coolers are often quite loud at their maximum speed.
Best AIO Liquid Cooler: Enermax Liqmax III 360
- This Enermax liquid cooler has an excellent cooling capability with a 360-watt TDP (Thermal Design Power).
- Supports a variety of CPU sockets, including Intel LGA 2066, 2011-3, 2011, 1700, 1200, 1366, 1156, 1155, 1151, 1150 and AMD AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1.
- Quiet operation at 14-27 dBA.
- Make sure your computer case dimensions support this, as it will take up a decent amount of space!
Best Dual-Fan Air CPU Cooler: Noctua NH-D15
- Dual 140 mm fans provide 220-watt TDP (183 NSPR) of cooling capability.
- Supports a variety of CPU sockets, including Intel LGA 1700, 1200, 1156, 1155, 1151, 1150, 2011, 2066 and AMD AM4, AM3, AM3+, AM2, AM2+, FM2, FM2+.
- Quiet operation at 24.6 dBA.
Runner Up - Dual-Fan Air CPU Cooler: Thermaltake TOUGHAIR 510
- This CPU cooler doesn't have any fancy LED lights, but the dual 120 mm fans do a great job of cooling AM4 CPUs.
- Supports a variety of CPU sockets, including Intel LGA 1700, 1200, 1156, 1155, 1151, 1150 and AMD AM4, AM3, AM3+, AM2, AM2+, FM2, FM1.
- Suppose you think this cooler will take up too much space. In that case, Thermaltake has a few single-fan TOUGHAIR variants which use different orientations.
- This CPU cooler has a 2000 RPM max speed for optimal cooling.
- 180-watt TDP (Thermal Design Power).
For AMD's Zen+-based Ryzen 3 1200 AF processor, you'll need a motherboard with an AM4 socket and a compatible chipset.
Motherboards for AMD processors are made with chipsets provided by AMD. Each chipset offers a unique set of capabilities. However, motherboards must explicitly support features and capabilities for you to use them. Verify that a motherboard supports the features and capabilities you desire.
Ryzen 1000-series CPUs, which includes the Ryzen 3 1200 AF, are compatible with all 300 and 400-series consumer chipsets. Supported chipsets include the X470, B450, X370, B350, and A320.
The X470 and B450 are our recommended chipsets for the Ryzen 3 1200 AF CPU, as they provide the most functionality among compatible chipsets.
Note that the Ryzen 3 1200 AF CPU only supports PCIe 3.0.
For a detailed comparison of these chipsets and PCIe speeds, check out my article Which Chipsets Work With AMD's Ryzen 3 1200 AF CPU?.
Find Zen+ X470 Motherboards on Amazon (affiliate link).
Find Zen+ B450 Motherboards on Amazon (affiliate link).
B450 Motherboard: GIGABYTE B450 AORUS PRO Wi-Fi
- Our recommended B450 motherboard to pair with the Ryzen 3 1200 AF is GIGABYTE's B450 AORUS PRO Wi-Fi Motherboard:
- PCIe 3.0 graphics card support
- One Gb Ethernet port is faster than most Internet speeds.
- Two NVMe M.2 slots both run at PCIe 3.0 speeds.
- 802.11AC Wi-Fi provides support for a wireless network setup.
- USB 3.2 Gen 2 offers 10 Gbps USB speeds.
- Check the latest price of the GIGABYTE B450 AORUS PRO Wi-Fi on Amazon (affiliate link).
Before purchasing memory, review your motherboard specification to verify which speeds are supported. For example, if a DDR4 motherboard stated that it supports "DDR4 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000," that would mean that it could support DDR4-3400, DDR4-3333, and DDR4-3300 with memory overclocking, and DDR4-3200 and DDR4-3000 at stock speeds. Motherboard specifications also indicate the maximum capacity per stick of RAM (DIMM) and across all slots.
Recommended Stock-Speed DDR4
- At an effective frequency of 2666 MHz, this memory hits the fastest DDR4 speed supported by AMD's Ryzen 3 1200 AF CPU without overclocking.
- The low-profile form factor ensures that the heat spreaders don't get in the way of other devices, including your CPU heatsink.
Recommended DDR4 for Overclockers
- This DDR4 memory is designed for overclocking to an effective frequency of 3600 MHz.
- Compact heat spreaders avoid conflicting with a CPU cooler.
