Solar Panels: Wire Gauge Between Battery and Power Inverter?

Find out which wire gauge is best between a battery and inverter in your solar power system.

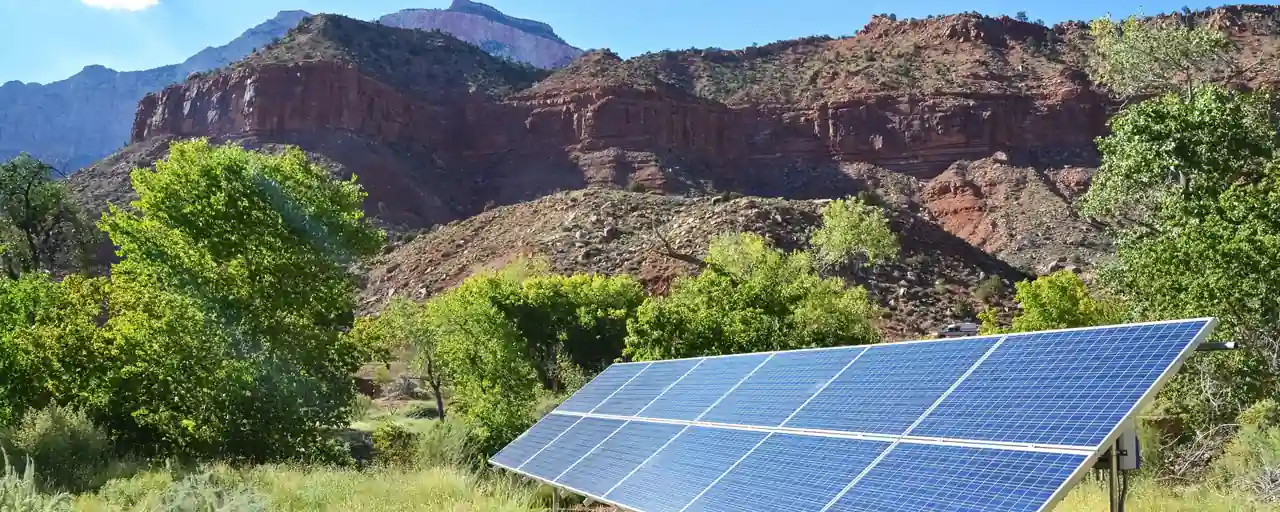

Solar Panels Jeremy Bezanger / Unsplash

Last Updated: September 10, 2021

Written by Brandon Jones

Solar Panel System - Wire Gauge for Battery to Inverter

Section Link

Below is a table showing which wire gauge you should get between a battery to the inverter, based on the power inverter's wattage.

For example, if you have a 1500 watt power inverter, then you'll want 1/0 gauge wire that's 6 feet long or less.

Wire Size - Battery to Inverter
Inverter CapabilityWire GaugeWire Length
250 watt 12 gauge < 6 ft (1.8m)
500 watt 10 gauge < 6 ft (1.8m)
1000 watt 4 gauge < 6 ft (1.8m)
1500 watt 1/0 gauge < 6 ft (1.8m)
2000 watt 4/0 gauge < 6 ft (1.8m)

To help buy new solar equipment, check out the Recommended Solar Equipment (TR) section below.

Learn more about setting up a solar panel system in my Simple Solar Panel System - Setup & Equipment Guide (TR).

Answers to Your Other Solar Panel System Questions

Section Link

Be sure to check out the articles in our solar panel series to help answer your other questions:

Section Link

Here's our list of recommended equipment for the most common solar power systems.

Solar Power System Cables

Batteries

Batteries are used for storing the energy produced by your solar panels. The battery is wired between your power inverter and the charge controller. Never connect your power inverter and the charge controller directly without a battery between the two.

Power Inverters

Power inverters are used for converting the battery's power (DC - direct current) into electricity used for powering your devices (AC - alternating current). Power inverters have an outlet on the device.

Charge Controllers

Charge controllers are used to regulate the voltage and current coming from the solar panels to prevent overcharging your battery.

100W Solar Panel

Solar panels are made of many solar cells (photovoltaic cells), most often made from crystalline silicon. These cells take in energy from the sun's rays, converted through the semiconductor, creating an electric field that transfers voltage and current. Solar panels connect to the charge controller to regulate the voltage and current produced by the panel.

Fuses

Fuses protect the wiring and devices from overcurrent. Fuses usually go on the closest point of the positive connection from your battery to the power inverter. You can also put fuses elsewhere in your system for protection, like an MC4 fuse for going between your solar panel and charge controller. You can find MC4 Fuses on Amazon (affiliate link).

Branch Connectors

Branch connectors are for merging the cables coming from multiple solar panels to your charge controller.
